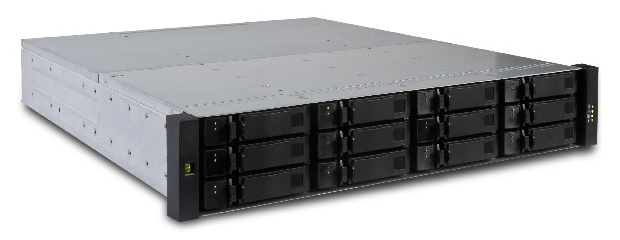

Dot Hill 3420 Storage Array

Dot Hill 3420 10Gb SAN RAID Array

The Dot Hill 3420 Storage Array delivers 10 Gbps iSCI storage performance that's optimized for virtualized environments. The Dot Hill 3420 Array scales to two dozen 2.5-inch drives per array and 144 per chassis for up to 12 terabytes of storage per chassis. As many as eight 3420 arrays fit into a single chassis. Not only is the Dot Hill 3420 a highly scalable solution, it's also remarkably flexible; it allows the intermixing of SAS, SATA and SSD drives.

Dot Hill 3420 Specifications:

Drive size: 2.5”
Drives per array: 24, 144 per chassis
Chassis capacity: 12 TB
Height: 3.5”
Width: 17.6”
Depth: 21.23” (excluding cables)
Chassis weight: 44 lbs (60 lbs with 146 GB drives)
Host speed: 10Gb iSCSI
Protection: AssuredSnap, AssuredCopy
Maximum number of arrays per chassis: 8
Drive types: SAS, Nearline SAS, SATA, SSD
RAID levels supported: 0, 1, 3, 5, 6, 10, 50
Interface types: 10/100 Ethernet
Voltage: -36 to -72 DC, -48/-60 V nominal

Get a Dot Hill 3420 Quote Today!

For pricing on the Dot Hill 3420 Storage Array, contact an Acclinet IT hardware specialist today by calling 603-323-0590. If you're unsure whether the 3420 Array is the correct solution for your datacenter, our zero-cost consulting services can help you determine which Dot Hill system is the right fit.
