Dot Hill 3723 Array

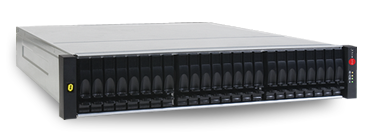

Dot Hill AssuredSAN 3723 Storage Array

The Dot Hill AssuredSAN 3723 Storage Array is a world-class solution that's geared toward sequential workloads. The Dot Hill 3723 is well equipped to tackle a myriad of strenuous applications, including video on-demand, video surveillance, disaster recovery, post-production editing, high I/O applications, EDI, databasing and server virtualization.

With up to two dozen 2.5” drives per array, the Dot Hill 3723 scales to 24 terabytes (TB) of storage. As many as eight 3723 arrays fit into one chassis. This array supports SAS and SSD drives. Dot Hill's channel model is the 3732C, which includes the array, drives, rail lit, cables, installation guide and support.

The 3723 Array features Dot Hill's EcoStor technology, which eliminates the need for cache batteries in favor of super capacitors and flash memory. During a power outage, the 3723 provides infinite cache backup. Not only is the 3723 remarkable dependable, it's also environmentally friendly. It can help your datacenter reduce costs while shrinking its carbon footprint.

Dot Hill 3723 Specifications:

Drives: 24 per array (maximum)
Capacity: 24 TB (maximum per chassis)
Drives supported: SAS, SSD, 2.5”
Height: 3.5” (8.9 cm)
Width: 17.6” (44.7 cm)
Depth: 20.46” (51.9 cm) without cables
Chassis weight: 36.4 lbs (16.5 kg); 46 lbs (20.9 kg) with drives
Host speed: 8Gb Fibre Channel (FC)
Data protection: AssuredSnap, AssuredCopy, AssuredRemote
Expansion units: Dot Hill 3120, Dot Hill 3130
Hosts: 4 direct connected FC hosts; 8Gb, 4Gb, 2Gb, 64 switched
RAID: 0, 1, 3, 5, 6, 10, 50; hardware
Cache memory: 2 GB per controller; battery-free cache backup
Interface types: 10/100 Ethernet, mini USB
High availability features: Redundant hot-swappable controllers, redundant hot-swappable disks, fans, power; dual power cords, hot standby spare, automatic failover, multi-path support, AssuredSnap, AssuredCopy, AssuredRemote

Get Dot Hill 3723 Pricing!

For the Dot Hill 3723's current price, call us today at 603-323-0590. If you're unsure whether the 3723 is the right solution for your datacenter, our zero-cost consulting services can help you determine which Dot Hill system best suits your needs.
