Dot Hill 3733 Array

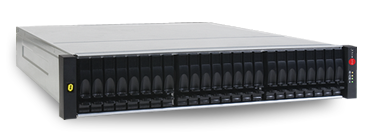

Dot Hill AssuredSAN 3733 Storage Array

The Dot Hill AssuredSAN 3733 Storage Array is a highly reliable solution that's optimized for sequential workloads. The Dot Hill 3733 is armed and ready to handle a plethora of cumbersome applications, including on-demand video, video surveillance, disaster recovery, post-production editing, high I/O applications, EDI, databasing and server virtualization.

Loaded with up to a dozen 3.5” drives, the AssuredSAN 3733 scales to 36 terabytes (TB) of storage. The 3733 Array supports both SAS and SSD disks. Dot Hill's channel model, which includes the array, drives, rail kit, cables, installation guide and support, is called the 3733.

The 3733 Array features Dot Hill's EcoStor technology, which eliminates the need for cache batteries in favor of super capacitors and flash memory. During a power outage, the 3733 provides infinite cache backup. Not only is the 3733 remarkable dependable, it's also environmentally friendly. It can help your datacenter reduce costs while shrinking its carbon footprint.

Dot Hill 3733 Specifications:

Drives: 12 (maximum)
Capacity: 36 TB (maximum per chassis)
Drives supported: 3.5” SAS, SSD
Height: 3.5” (8.9 cm)
Width: 17.6” (44.7 cm)
Depth: 20.46” (51.9 cm) without cables
Chassis weight: 36.4 lbs (16.5 kg); 46 lbs (20.9 kg) with drives
Host speed: 8Gb Fibre Channel (FC)
Data protection: AssuredSnap, AssuredCopy, AssuredRemote
Expansion units: Dot Hill 3120, Dot Hill 3130
Hosts: 4 direct connected FC hosts; 8Gb, 4Gb, 2Gb, 64 switched
RAID: 0, 1, 3, 5, 6, 10, 50; hardware
Cache memory: 2 GB per controller; battery-free cache backup
Interface types: 10/100 Ethernet, mini USB
High availability features: Redundant hot-swappable controllers, redundant hot-swappable disks, fans, power; dual power cords, hot standby spare, automatic failover, multi-path support, AssuredSnap, AssuredCopy, AssuredRemote

Get Dot Hill 3733 Pricing Today!

For the Dot Hill 3733 Array's current price, call us today at 603-323-0590. If you're unsure if the 3733 is the correct solution for your datacenter, our zero-cost consulting services can help you determine which Dot Hill system best suits your needs.
